DotNetUserControl

Informationen

  • Kategorien: GUI | Steuerelemente
  • Version: 15.0.0.3401
  • Veröffentlichungsdatum: Mittwoch, 8. Februar 2012
  • Entwickler: Schulze
  • Benötigt Datenbankänderung: Nein
  • Betreff: DotNetUserControl

Beschreibung

Im Frontend wurde ein neuer Steuerelement--Typ "DotNetUserControl" eingebaut.

Die Nutzung geschieht folgendermaßen:

  • zum Einbinden wird ein .NET-UserControl benötigt (Implementierung der Schnittstelle System.Windows.Forms.IUserControl) welches zusätzliche die generische pit-Schnittstelle "IUserControl" für ein NurLese-Steuerelement bzw. "IEditableUserControl" für ein Lese-/Schreib-Steuerelement implementiert, die pit-Schnittstellen befinden sich im Namespace PitFM.Frontend.Controls in CliControl.dll

  • in SysControl (pit - IS Metadaten) sind im "DotNetUserControl"-Steuerelement die Datenfelder ASSEMBLY => Name der DLL mit der UserControl-Klasse und USERCONTROLCLASS => vollständiger Name der UserControl-Klasse (mit Namespace) zu füllen

Zur Laufzeit muss die Assembly im bin-Ordner vorhanden sein.

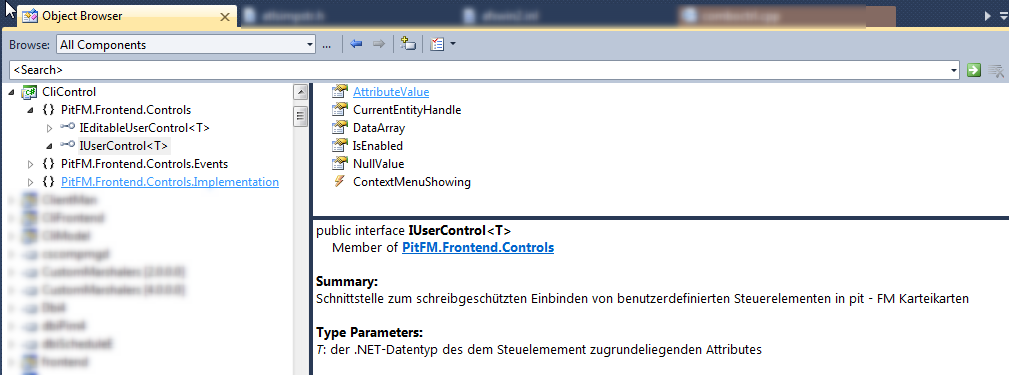

Erläuterungen der Schnittstelle sind in der DLL implementiert und werden in Visual Studio angezeigt (Object Browser, Intellisense).

Bilder

DotNetUserControl

Beispielcode

//
// C# - Projekt
//
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing;
using System.Data;
using System.Linq;
using System.Text;
using System.Windows.Forms;

namespace MyUserCtrl
{
    // UserControl1.Designer.cs
    //
    partial class UserControl1
    {
        private System.ComponentModel.IContainer components = null;

        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Component Designer generated code

        private void InitializeComponent()
        {
            this.textBox1 = new MyUserCtrl.MyTextBox();
            this.SuspendLayout();
            //
            // textBox1
            //
            this.textBox1.Dock = System.Windows.Forms.DockStyle.Fill;
            this.textBox1.Location = new System.Drawing.Point(0, 0);
            this.textBox1.Name = "textBox1";
            this.textBox1.Size = new System.Drawing.Size(85, 20);
            this.textBox1.TabIndex = 0;
            this.textBox1.Leave += new System.EventHandler(this.textBox1_Leave);
            this.textBox1.MouseUp += new System.Windows.Forms.MouseEventHandler(this.textBox1_MouseUp);
            //
            //
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.Controls.Add(this.textBox1);
            this.Name = "UserControl1";
            this.Size = new System.Drawing.Size(85, 22);
            this.ResumeLayout(false);
            this.PerformLayout();
        }

        #endregion

        private textBox1;
    }

    // UserControl1.cs
    //
    public partial class UserControl1 : UserControl, PitFM.Frontend.Controls.IEditableUserControl< string >
    {
        int m_nCurrentEntityHandle;

        public event PitFM.Frontend.Controls.Events.AttributeValueChangedEventHandler<string> AttributeValueChanged;
        public event PitFM.Frontend.Controls.Events.CurrentEntityHandleChangedEventHandler CurrentEntityHandleChanged;
        public event PitFM.Frontend.Controls.Events.ContextMenuShowingEventHandler ContextMenuShowing;

        public UserControl1()
        {
            InitializeComponent();
        }

        public string AttributeValue
        {
            get
            {
                return textBox1.Text;
            }
            set
            {
                textBox1.Text = value;
            }
        }

        public int CurrentEntityHandle
        {
            get
            {
                return m_nCurrentEntityHandle;
            }
            set
            {
                m_nCurrentEntityHandle = value;
            }
        }

        public bool IsEnabled
        {
            get
            {
                return textBox1.Enabled;
            }
            set
            {
                textBox1.Enabled = value;
            }
        }

        public bool IsReadOnly
        {
            get
            {
                return textBox1.ReadOnly;
            }
            set
            {
                textBox1.ReadOnly = value;
            }
        }

        public string NullValue
        {
            get
            {
                return null;
            }
        }

        public Dictionary<string, string > DataArray
        {
            set
            {
            }
        }

        private void StoreValue()
        {
            if ( AttributeValueChanged != null )
            {
                AttributeValueChanged(this, new PitFM.Frontend.Controls.Events.AttributeValueChangedEventArgs<string>(textBox1.Text));
            }
        }

        private void textBox1_Leave(object sender, EventArgs e)
        {
            StoreValue();
        }

        private void textBox1_MouseUp(object sender, MouseEventArgs e)
        {
            if ( e.Button==MouseButtons.Right && ContextMenuShowing != null )
            {
                ContextMenuShowing( this, new PitFM.Frontend.Controls.Events.ContextMenuShowingEventArgs(new Point(e.X, e.Y)));
            }
        }

    }


    public class MyTextBox : TextBox
    {
        public MyTextBox()
        {
            // Verhindern dass das Kontextmenu angezeigt wird
            //
            ContextMenu = new ContextMenu();
        }

        protected override void WndProc(ref Message m)
        {
            base.WndProc( ref m );

            if ( m.Msg == 8 ) // KillFocus
            {
                OnLeave( new EventArgs() );
            }
        }
    }

}
